Titanium Bolts

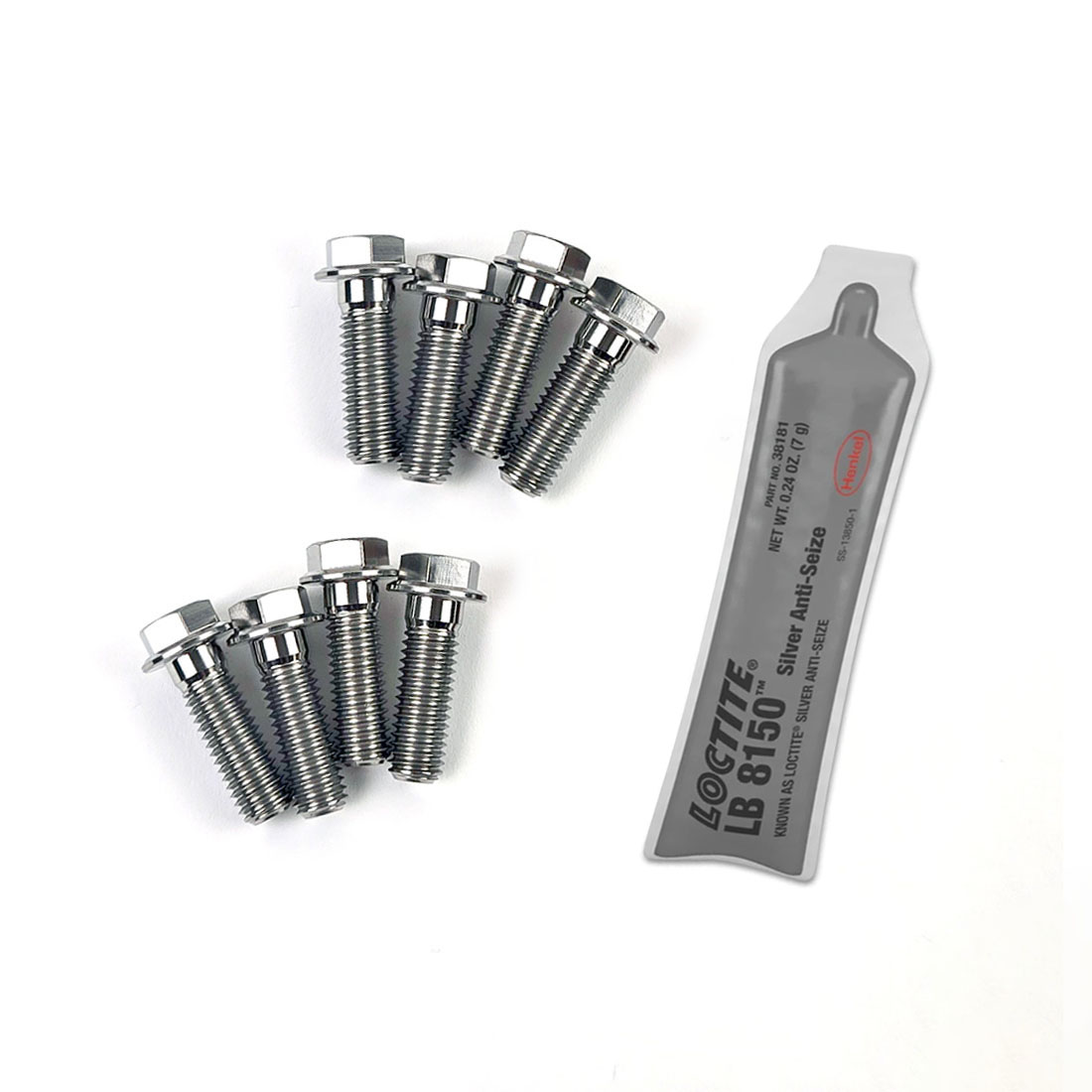

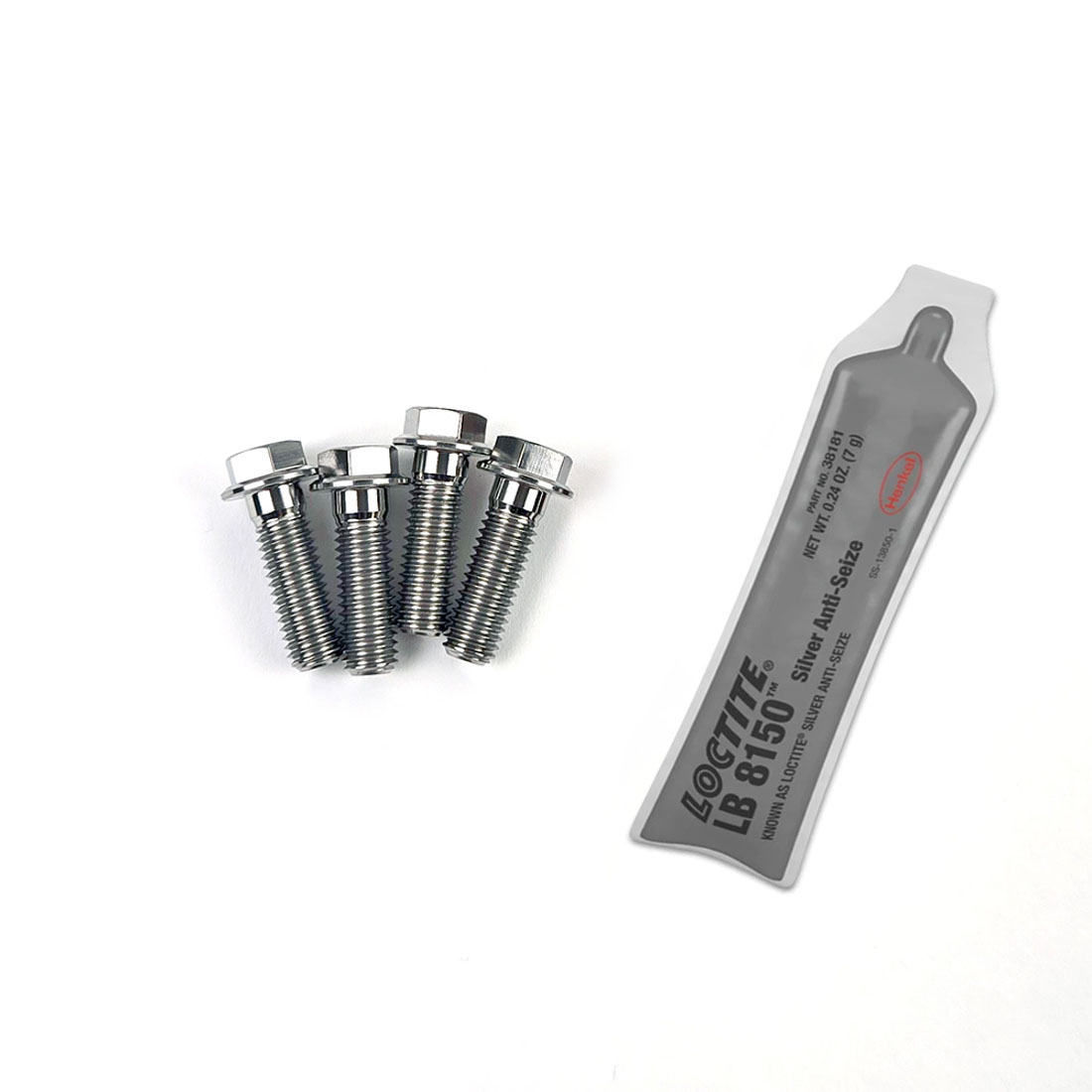

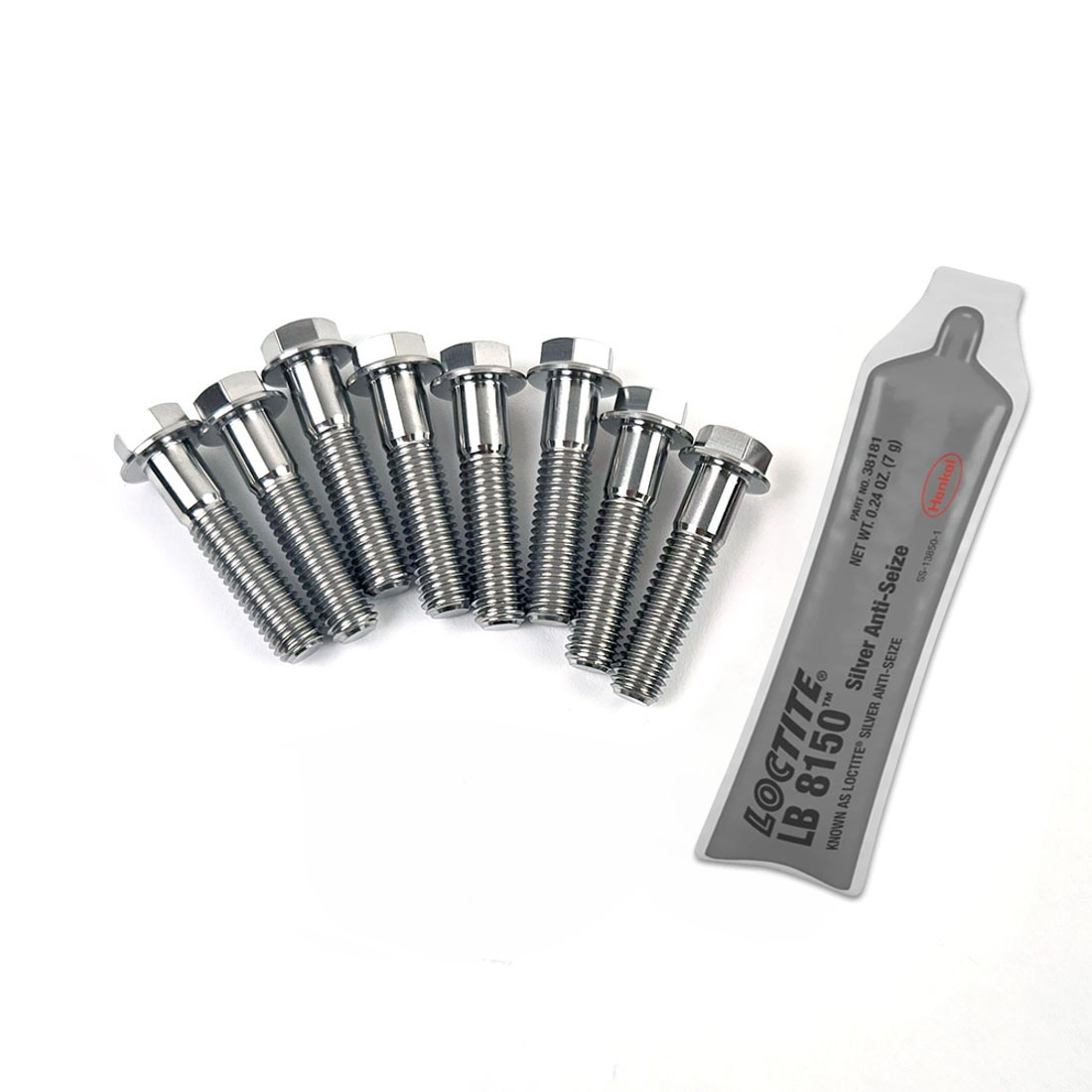

These are the same bolts used in our optimized triple clamps, but may fit other brands or locations as well (check sizes to be sure). Bar mount bolts are M10-1.5x45 with a tapered 8mm Allen head, fork tube clamp bolts are M8-1.25x35 with a JIS style 10mm head, and bar clamp bolts are M8-1.25x25 with a JIS style 10mm head. Prices listed are per bolt. Loctite C5-A anti-seize is required for installation, and is not included with the bolts. It is available for purchase below in 7 gram packets.

$6.45 (M8-1.25x35)

$6.45 (M8-1.25x25)

$8.95 (M10-1.5x45)

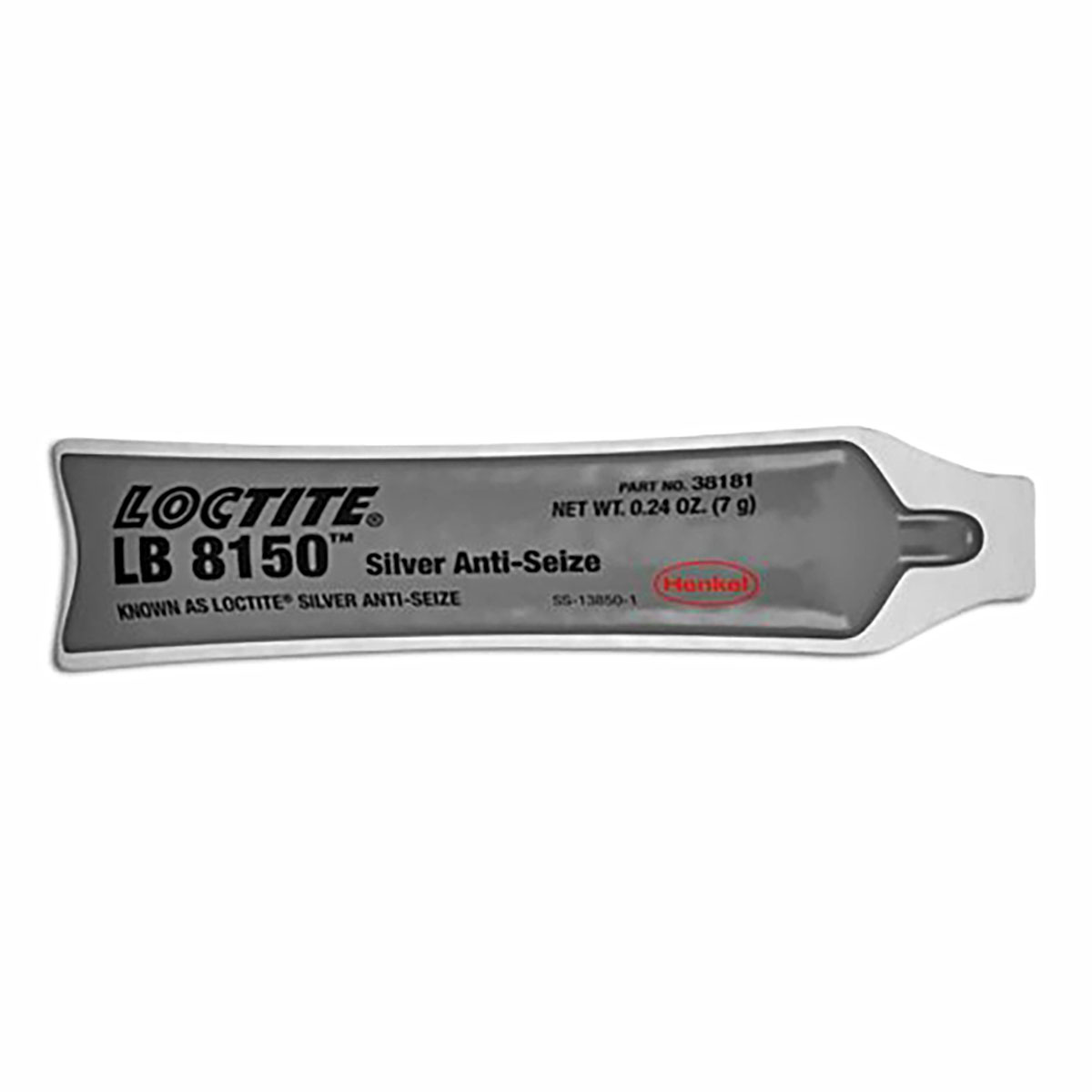

$4.45 (Anti-Seize, 7g)

Description
Additional Information

Made of grade 5 (6Al-4V) titanium, these are 44% lighter than steel at higher strength than most steel bolts (some specialty alloys will be stronger, but those are rare and for very specific applications). We highly recommend Loctite C5-A anti-seize for installation of these bolts and following appropriate torque specifications for your application.

Luxon Part#	LUX-GEN-M-P9008-35
Luxon Description	Titanium Bolt, HEX, M8-1.25 X 35

Weight	9 g
Stock Weight	N/A

Luxon Part#	LUX-GEN-M-P9008-25
Luxon Description	Titanium Bolt, HEX, M8-1.25 X 25

Weight	7 g
Stock Weight	N/A

Luxon Part#	LUX-GEN-M-P9010-45
Luxon Description	Titanium Bolt, SHCS, M10-1.5 X 45

Weight	19 g
Stock Weight	N/A
