4-Post Rubber Isolated Bar Mounts, Stark Varg M12 Interface

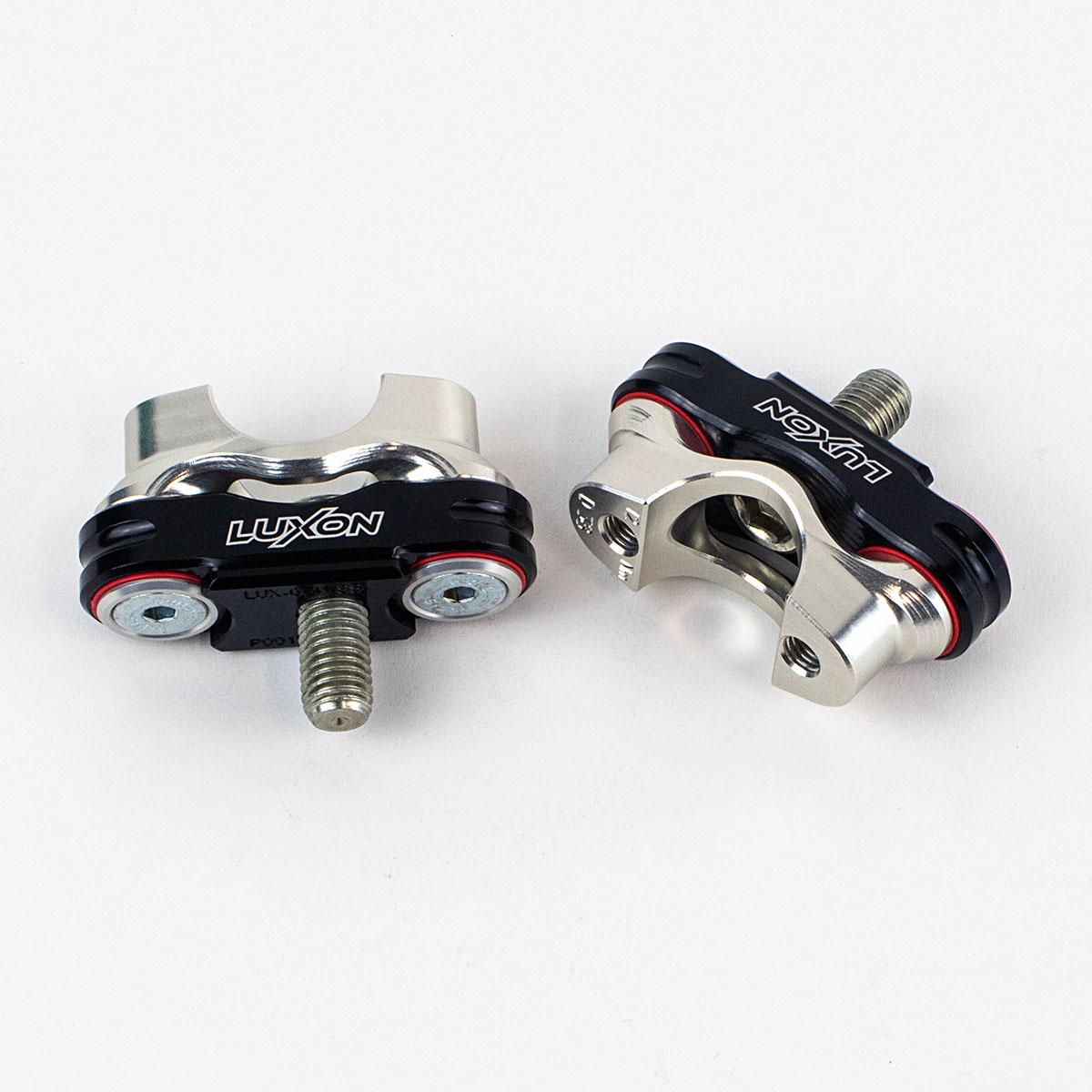

Our lightweight 4-post bar mounts eliminate twisting due to small crashes and tip-overs without sacrificing vibration absorbtion like a solid mount would. Four sets of bushings absorb hard hits and track roughness without compromising steering precision. Three different rubber bushing sets (soft, medium, and firm) are included to fine tune the feel.
These bar mounts do NOT fit the stock Stark triple clamps. They fit Xtrig and Luxon triple clamps and have the correct interface to use the stock Stark phone mount. These mounts do not include top caps, they are intended to use the stock phone mount (top bar clamp) and pinch bolts.
Our mounts are low profile at only 21 mm in height (bottom of bar to top of triple clamp, 4 mm lower than stock Stark), but we offer this bar riser kit to raise them up 5, 10, or 15 mm. Handlebar size is available in standard 1 1/8" size only.
- $189.95
Product Description, Fitment, Information, and Details
Stark Varg - M12 Interface:
The M12 interface on a Luxon Gen3 triple clamp (click to enlarge)
The M12 interface is a recessed slot on the top triple clamp, 26 mm wide, with three 12 mm threaded holes per side. The bar mounts sit in these slots and bolt directly to the triple clamp with an M12 bolt.
Fitment:
These mounts fit Luxon and Xtrig triple clamps. They do NOT fit stock clamps. Our mounts fit most bikes without issue. Always check for full clearance after installation and before riding.
Our Stark Varg M12 mounts fit the Stark Varg bikes with aftermarket Luxon or Xtrig triple clamps installed. If in doubt, please double check that your bike has aftermarket triple clamps with the M12 fitment as exlained above. These mounts do NOT fit stock Stark triple clamps.
- Stark Varg
- STARK FUTURE VARG 2023-2027
- Bikes with Luxon or Xtrig triple clamps ONLY
- MX 1.0, MX 1.2, EX
- 2023, 2024, 2025, 2026, 2027

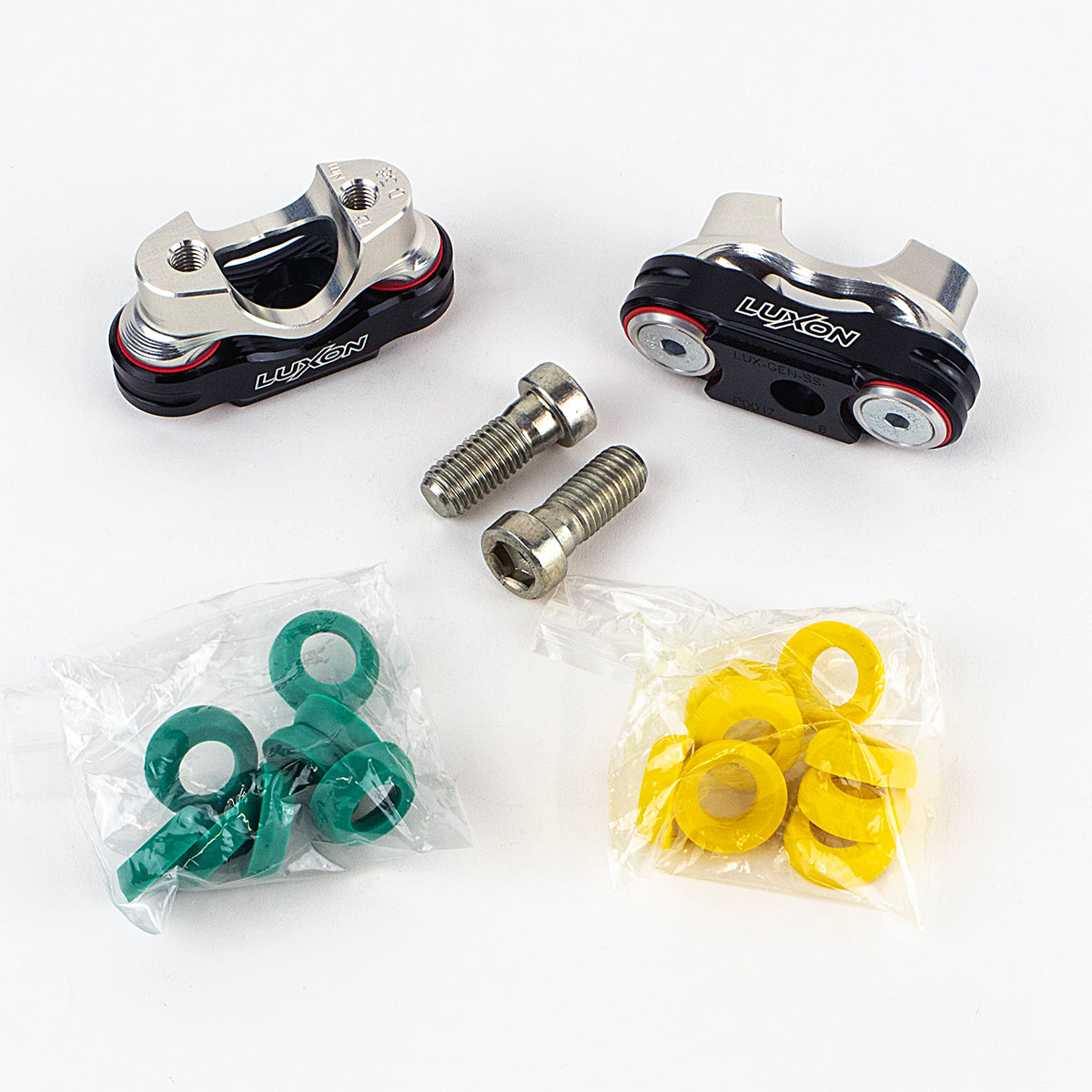

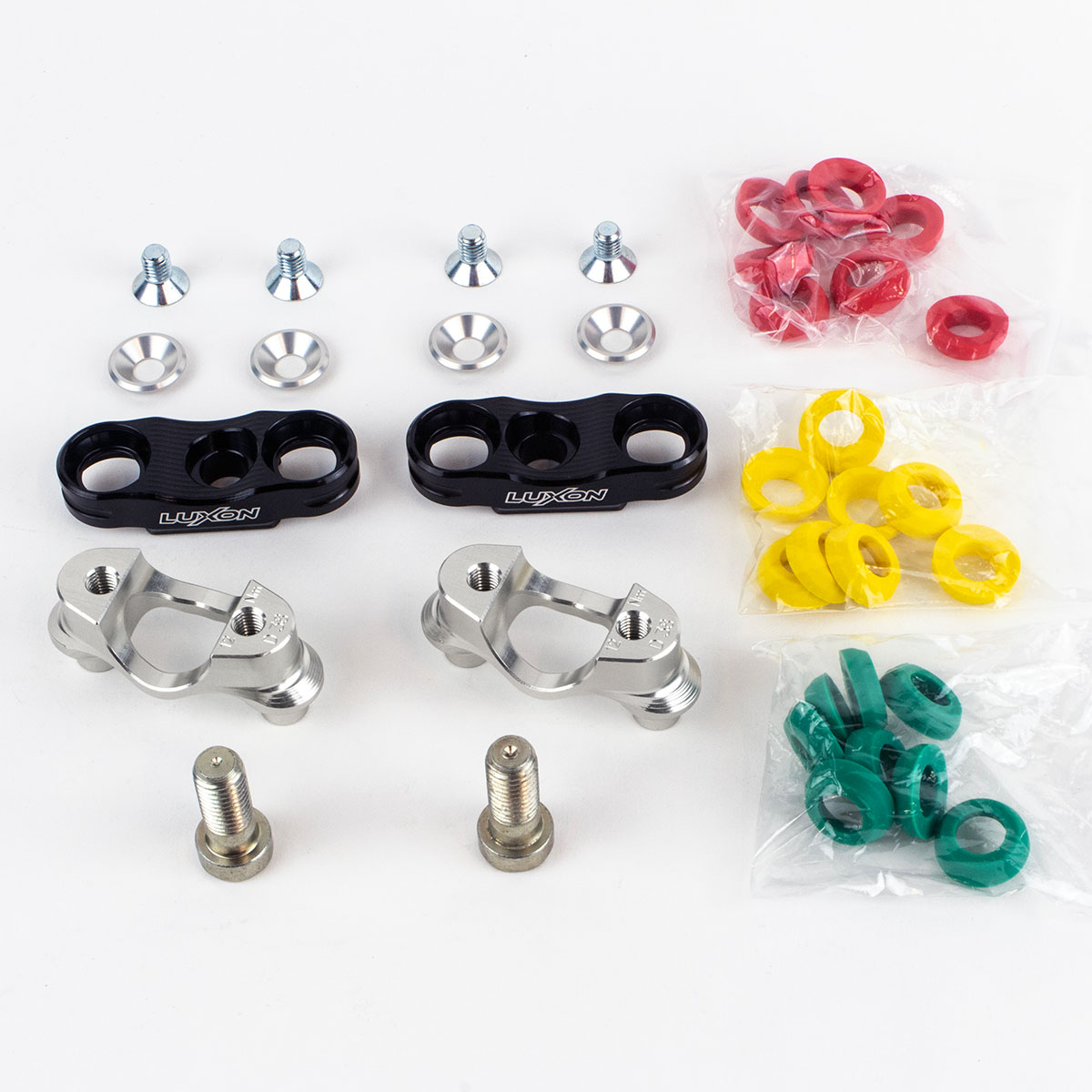

The M12 version of our Stark mounts fits Luxon and Xtrig aftermarket clamps with the M12 interface. These mounts are compatable (and require) the stock phone holder. The mounts are 4 mm lower than the stock height (bottom of bar to top of triple clamp). Offset is 7.5 mm (7.5 mm of bar position change when flipping the mounts around). Includes rubber isolated lower bar mounts, rubber bushings, high-strength steel mount bolts, anti-seize, and instructions (re-use your stock top clamp/phone mount and bolts).
Three different hardness levels of rubber bushings are included at no additional cost. Soft (green) is for lighter riders, vet riders, or those with wrist injuries. Medium (yellow) is recommended for most off-road and motocross use, and hard (red) is recommended for aggressive motocross use and faster riders.
Bushings will "break in" on the first ride and become a little softer than when first installed. Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings. Replacement bushings are available for a reasonable cost.
Installation video and instructions can be found on our customer page.
| Luxon Part# | LUX-SRK-SS-A0002-118 |
|---|---|
| Luxon Description | BAR MOUNTS, 4-POST RUBBER, STARK VARG, M12 |
| Weight, 1 1/8" (excluding top mount and pinch bolts) | 271 g, 0.60 lbs |
| Stock Weight (excluding top mount and pinch bolts) | 235 g, 0.52 lbs |
